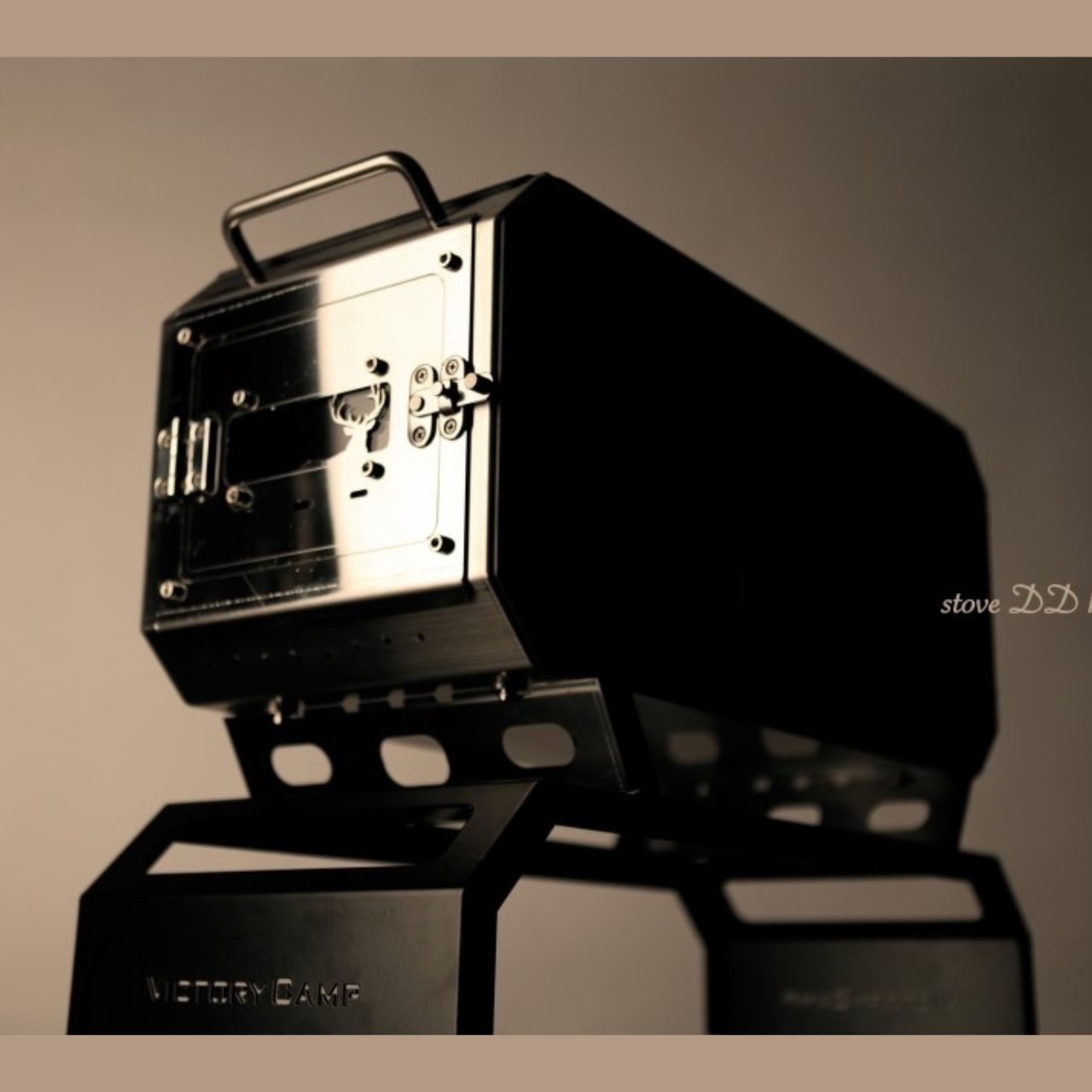

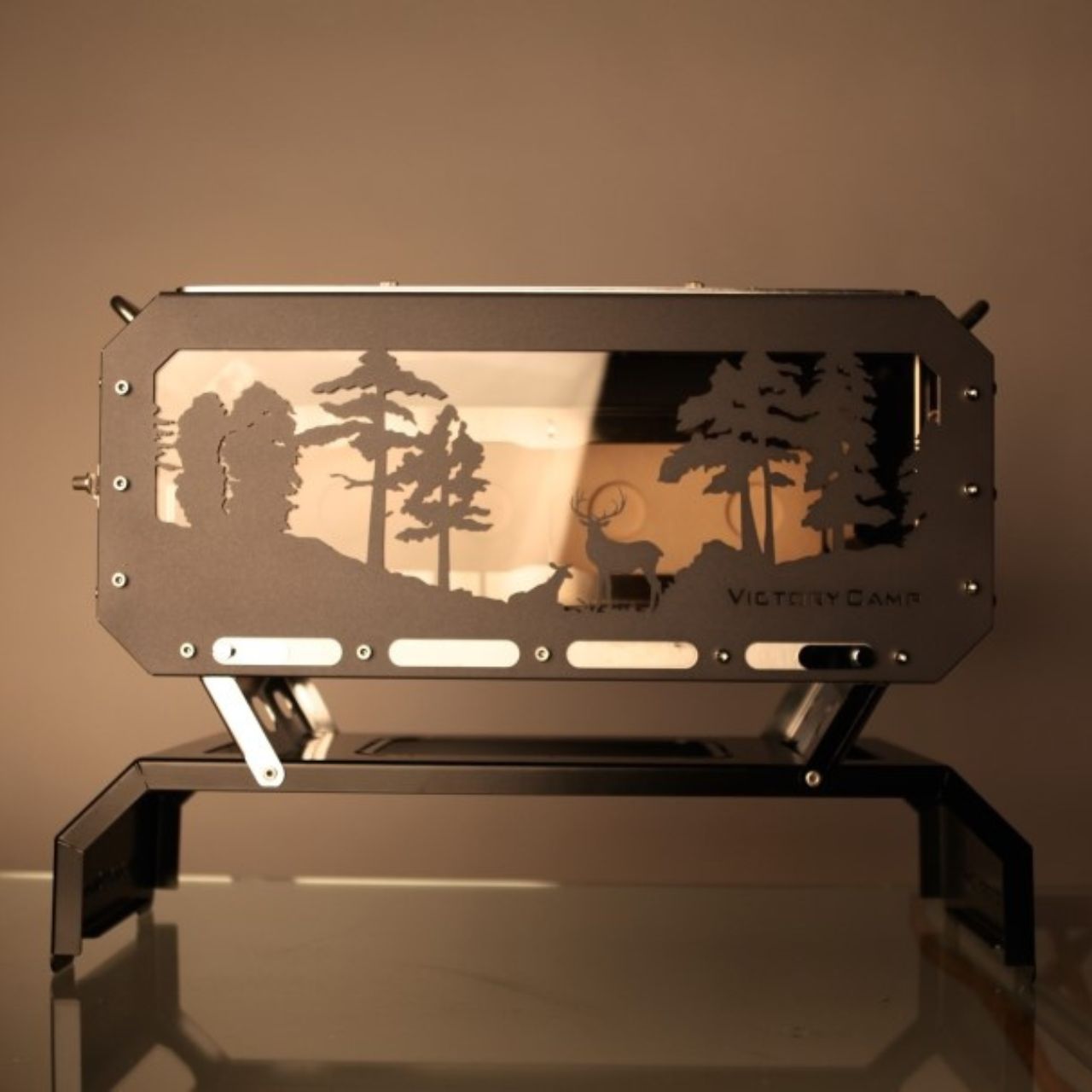

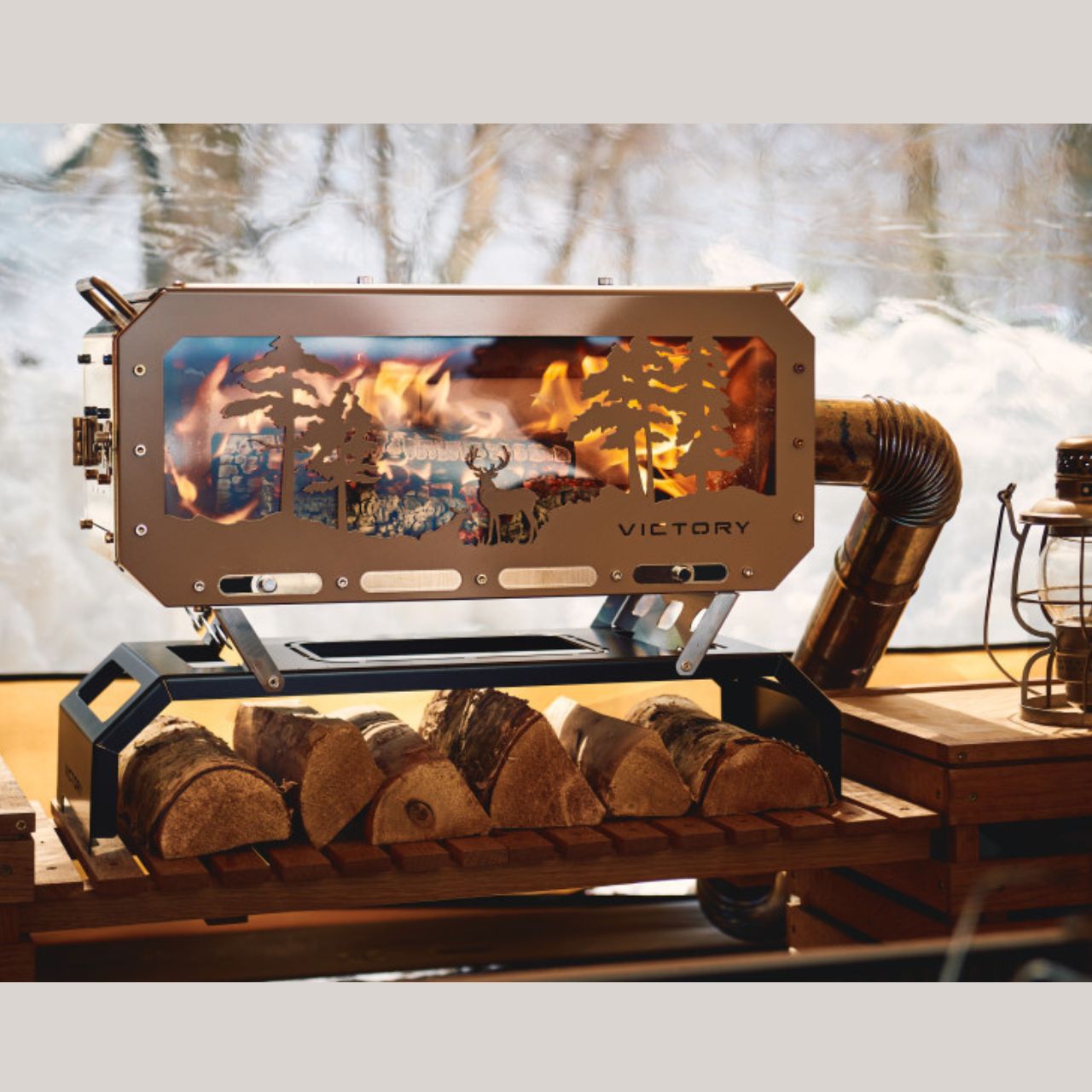

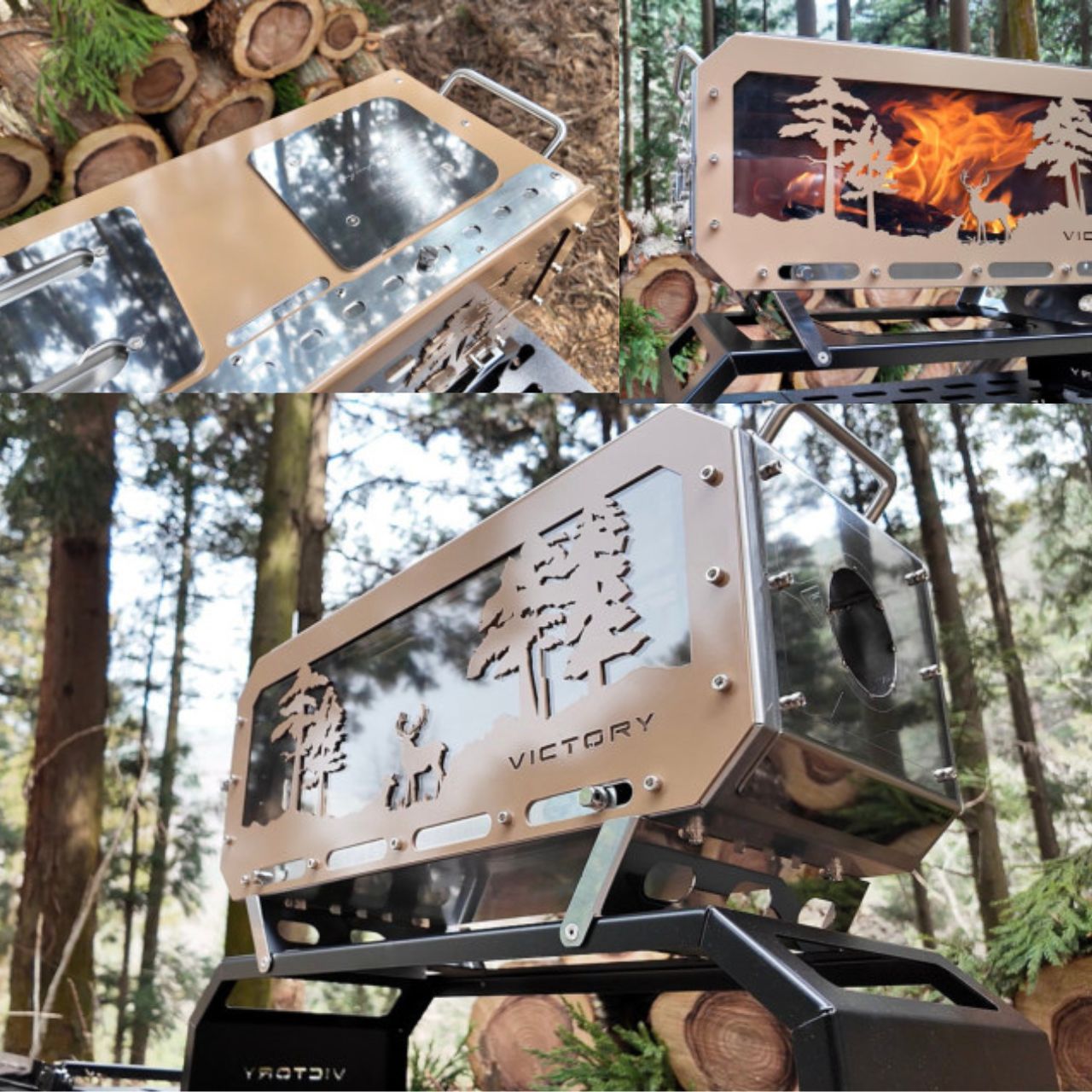

[Victory] Big DD Final Outdoor Camping Wood Stove

$953.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Victory

One of the High-Quality Wood Stove Designers and Manufacturers in Korea

Made in Korea

Product Features

- Ceramic-coated body & all stainless steel firebox

It has excellent maintenance conditions, even in high-temperature combustion, and is at least five times more expensive than general heat-resistant paints.

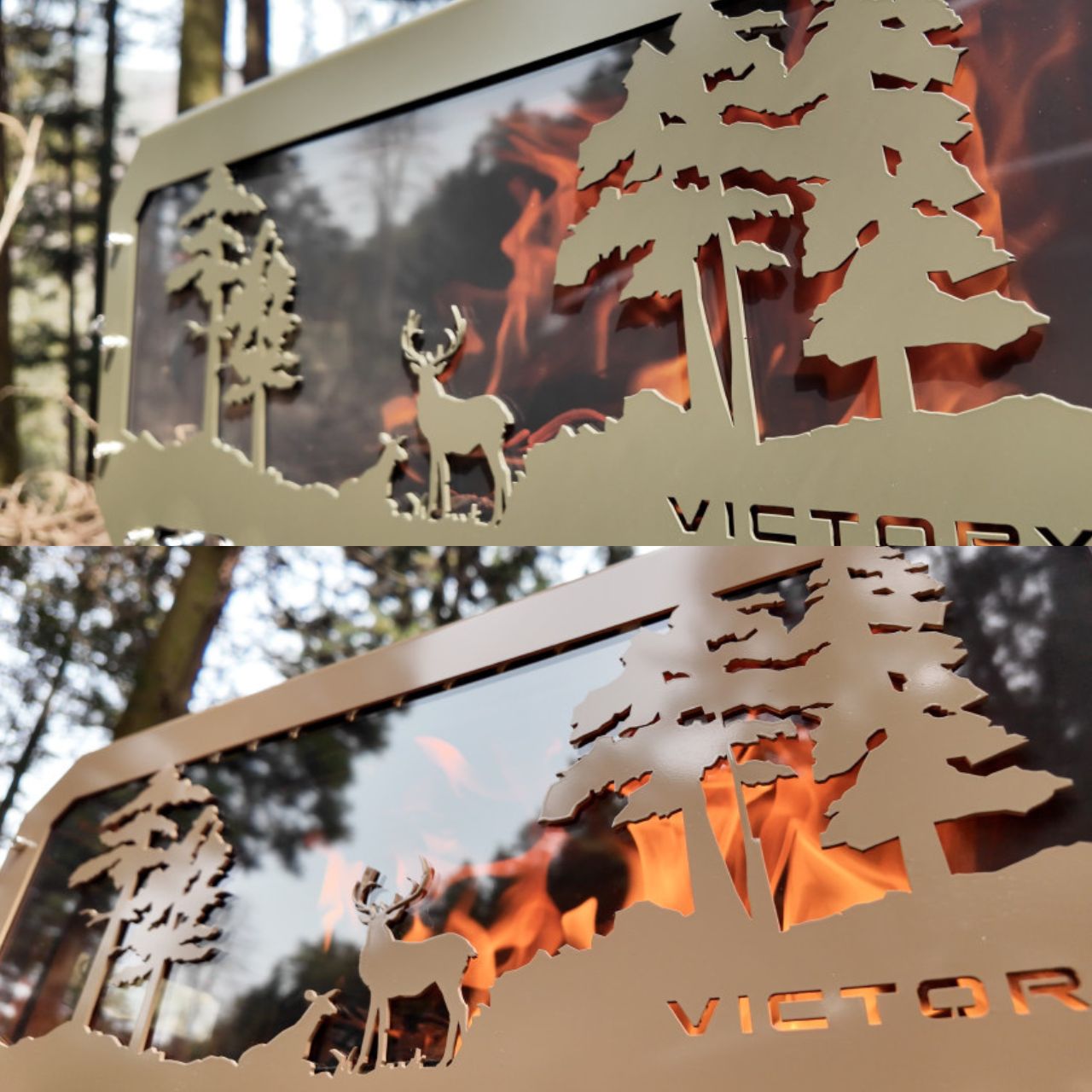

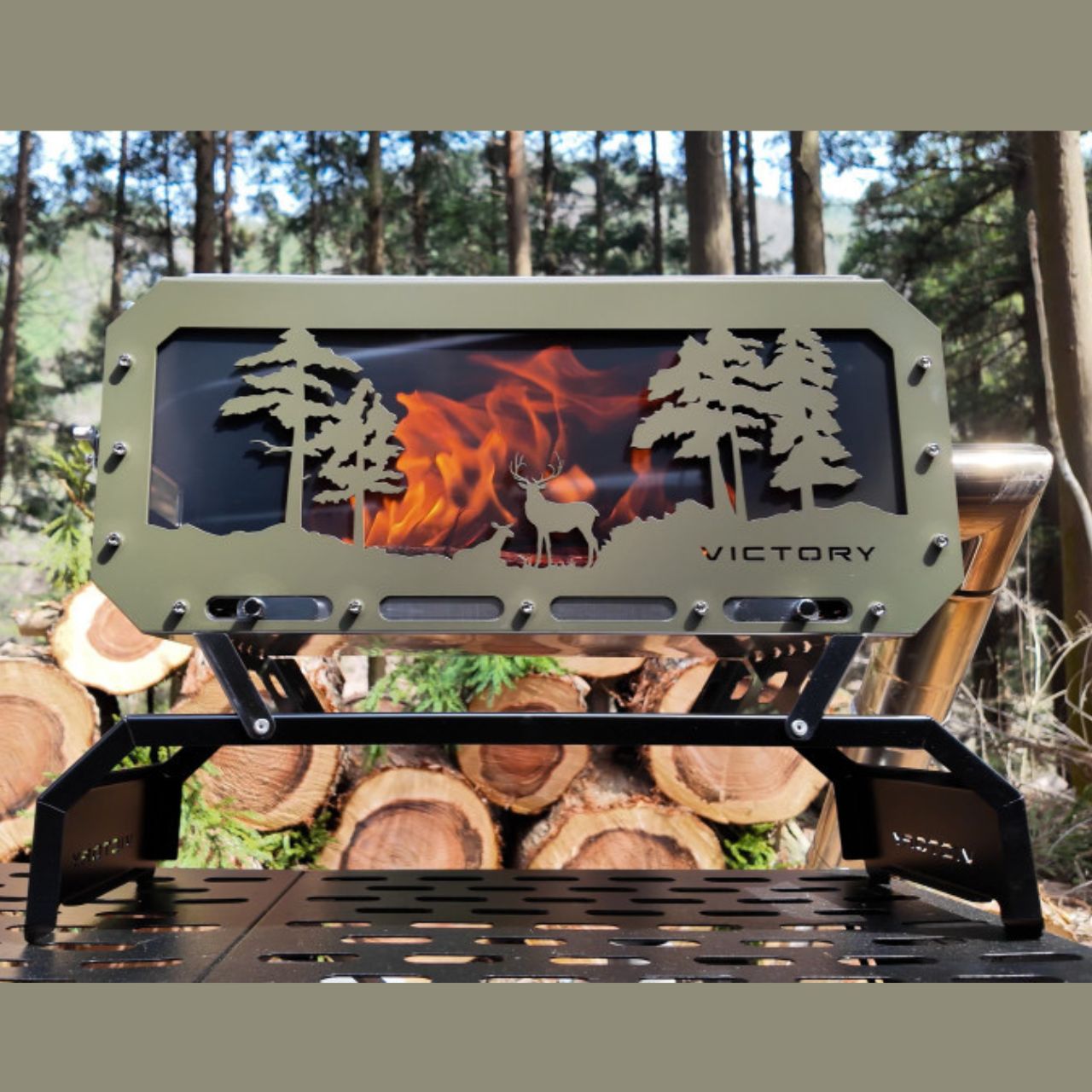

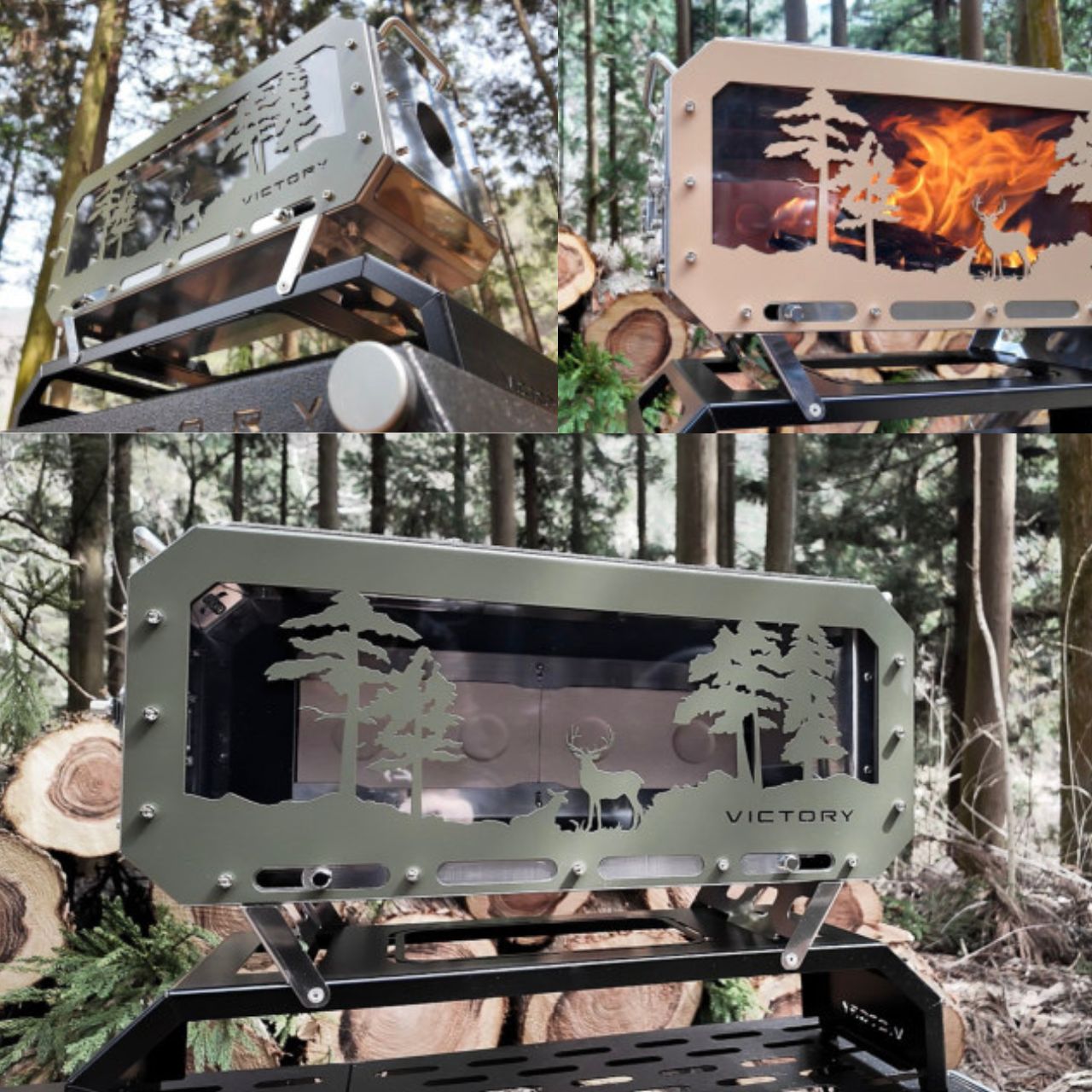

- Full-size air curtain with 500mm wide Ceramic Glass: The main air supply window. It has the function of controlling heat according to the size of the opening.

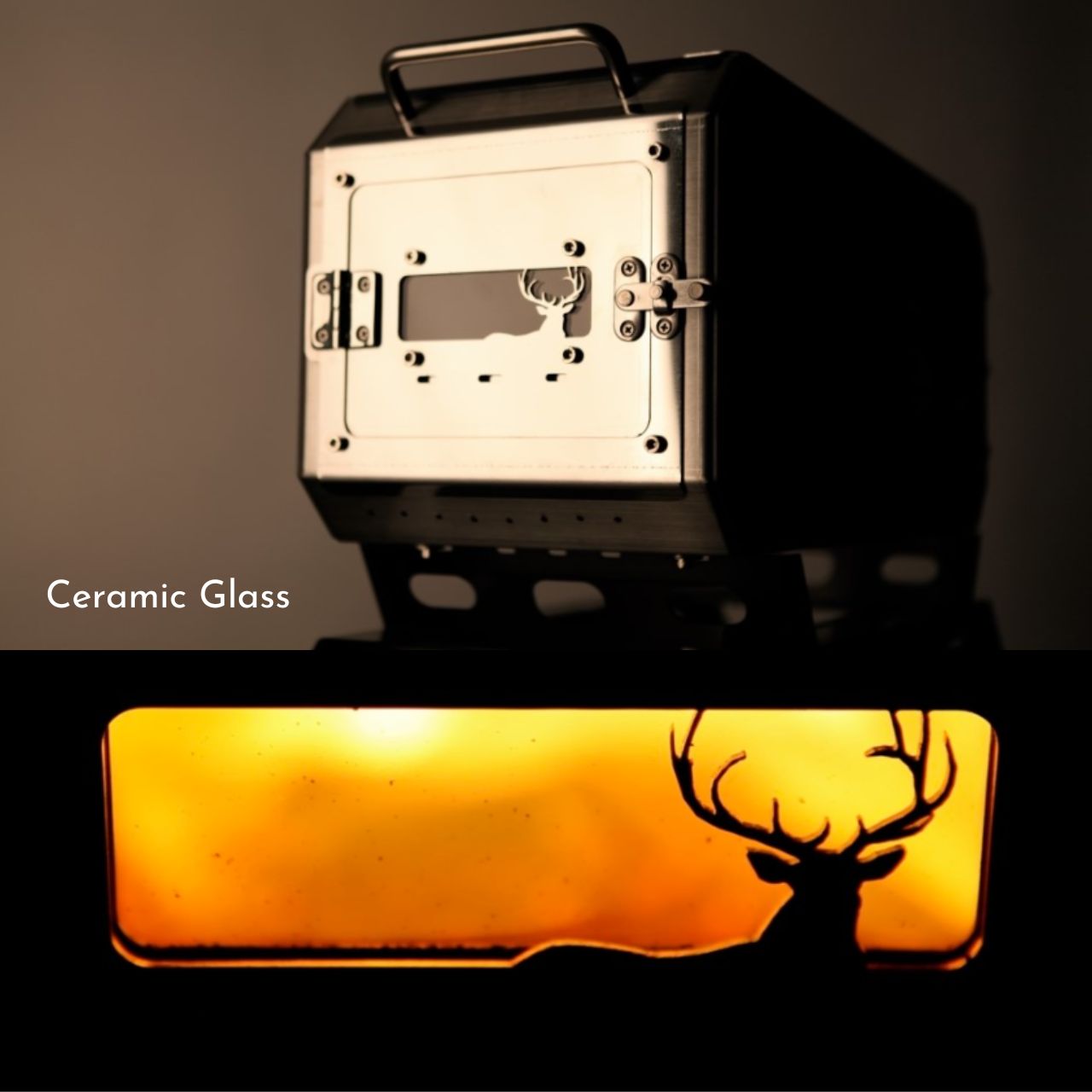

- Ceramic glass applied to the firebox door

- Firebox door & flue connection L.R switching

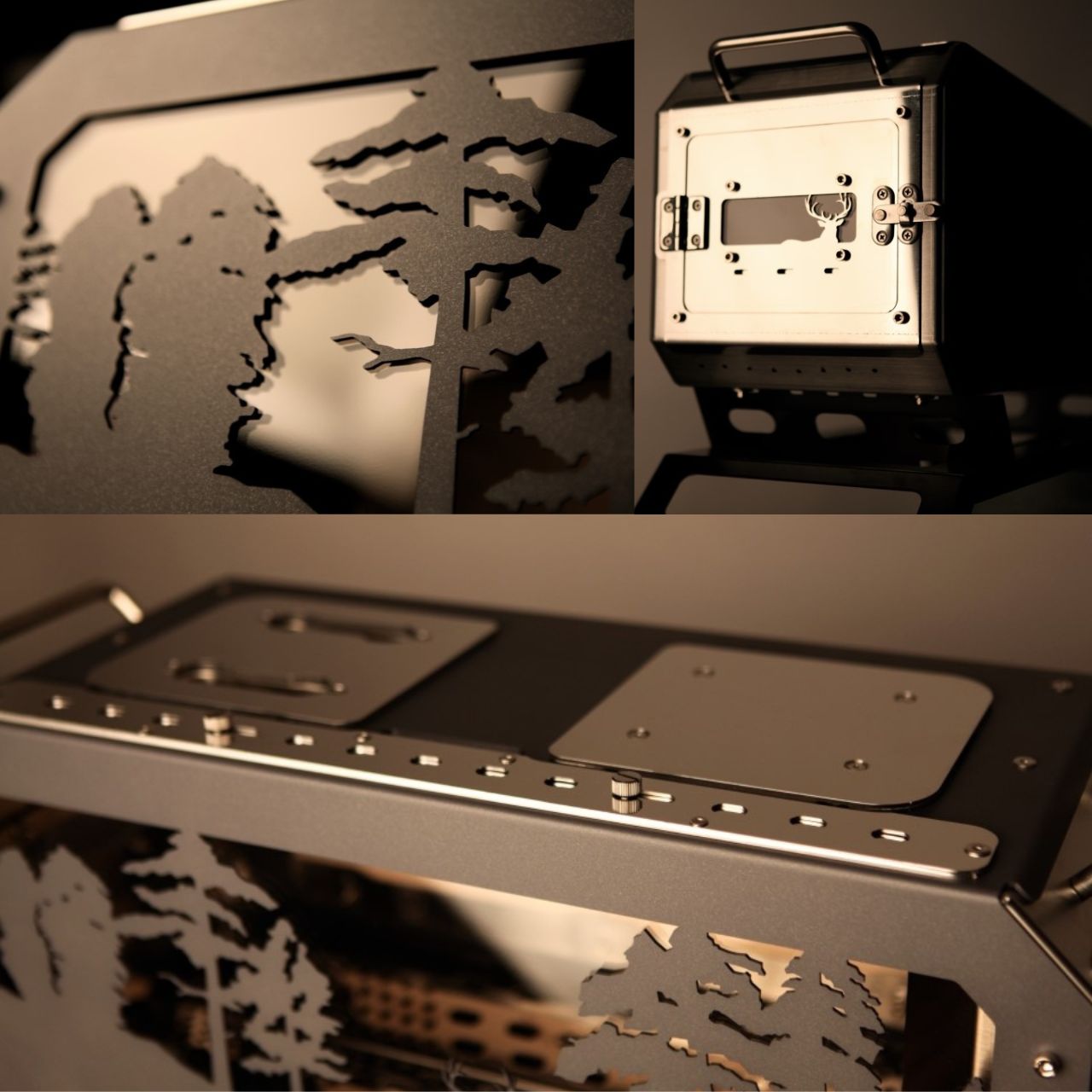

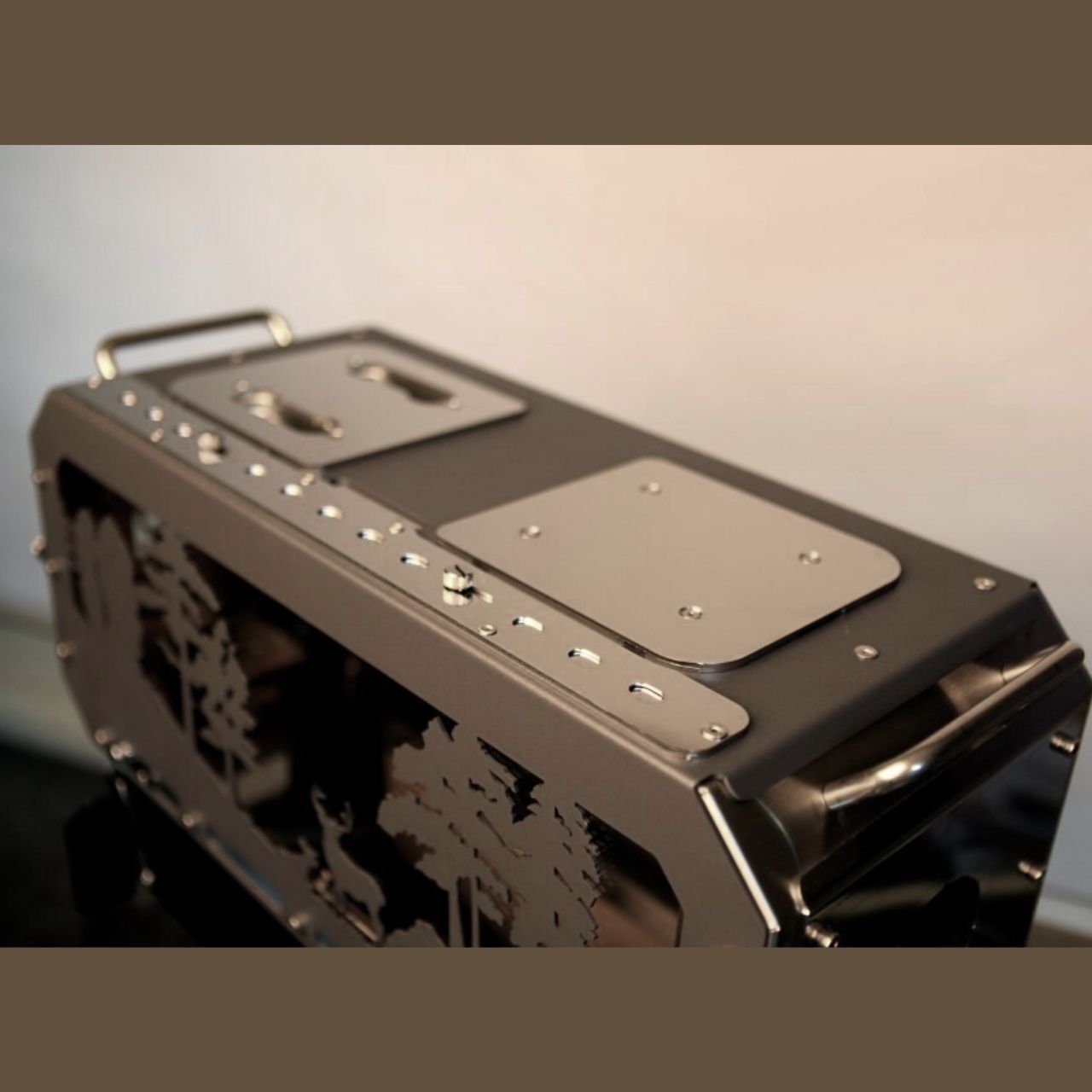

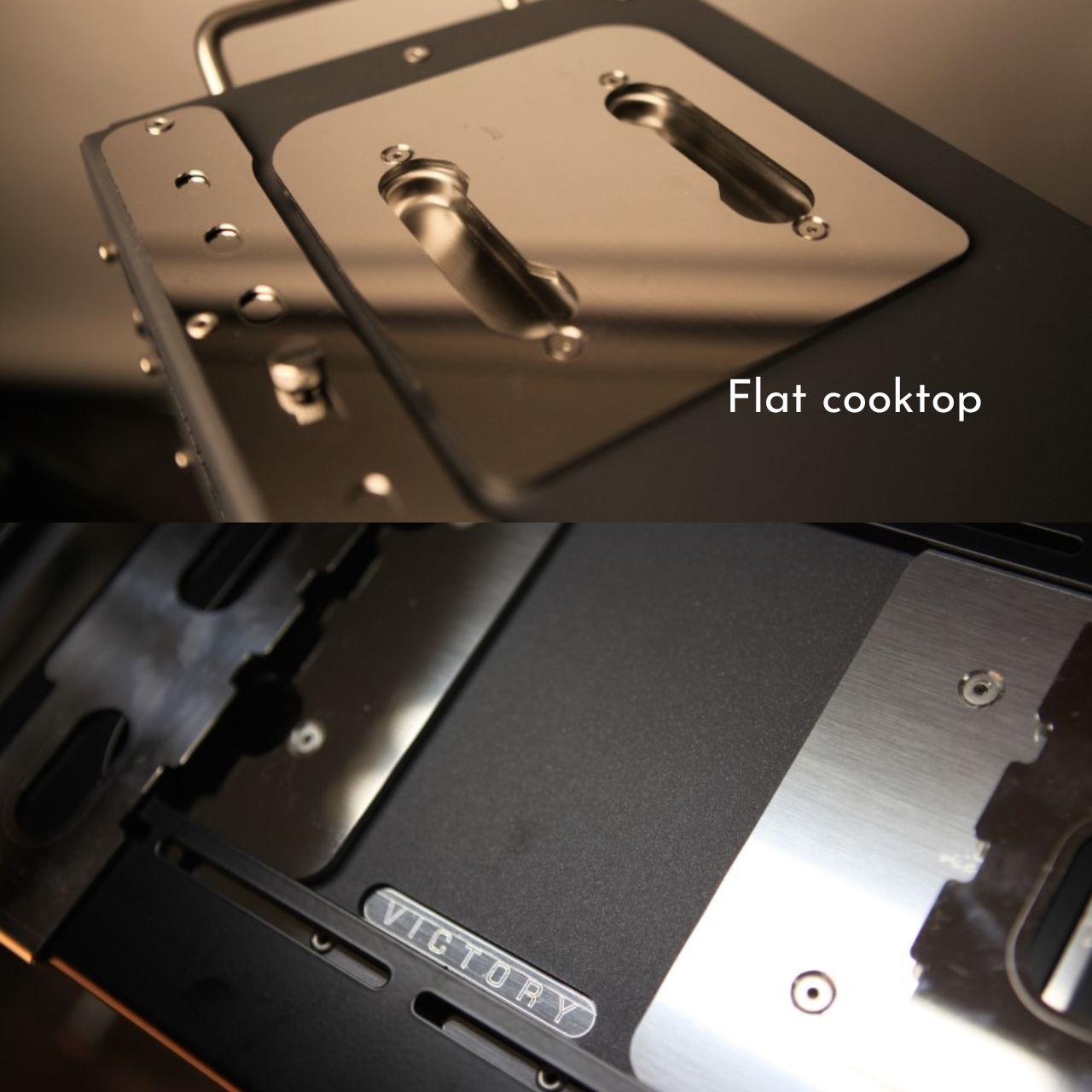

- Completely flat cooktop: The bottom of the heating vessel is completely sealed without protruding, maximizing the conduction efficiency.

- Heat Delay & Spark Baffle: Creating a 360-degree roller coaster-like exhaust flow, which not only increases heat efficiency but also minimizes sparks from going out of the chimney.

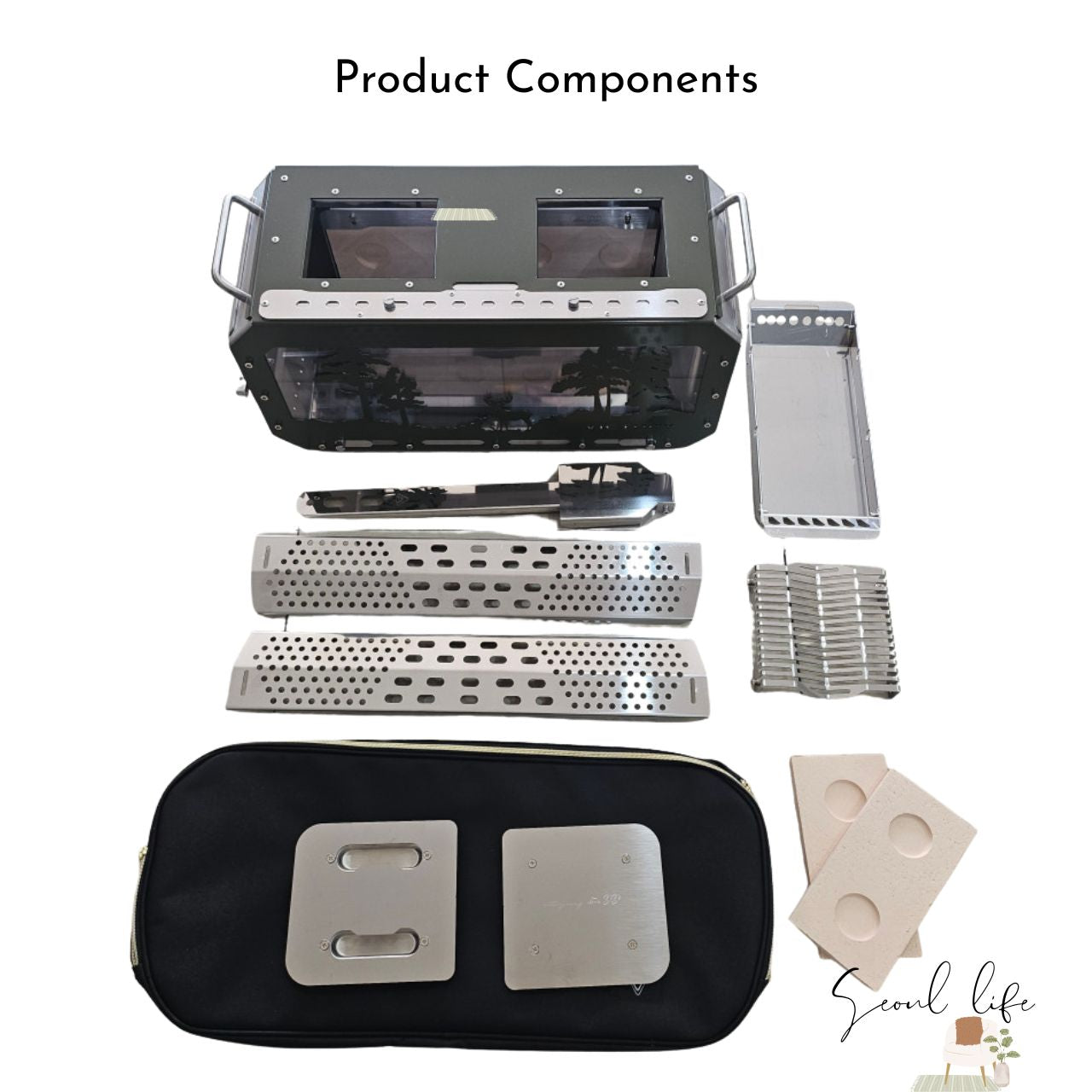

Product Components

- Stove

- 1* Steel Stand

- 2 heat-resistant glasses

- Shovel for Stove

- 2 charcoal holders

- 2 upper lids

- 2 fire bricks

- Storage case

❌This product does NOT include pellet burner component & exhaust pipes

Product Details

- Stove: 560x240x240mm

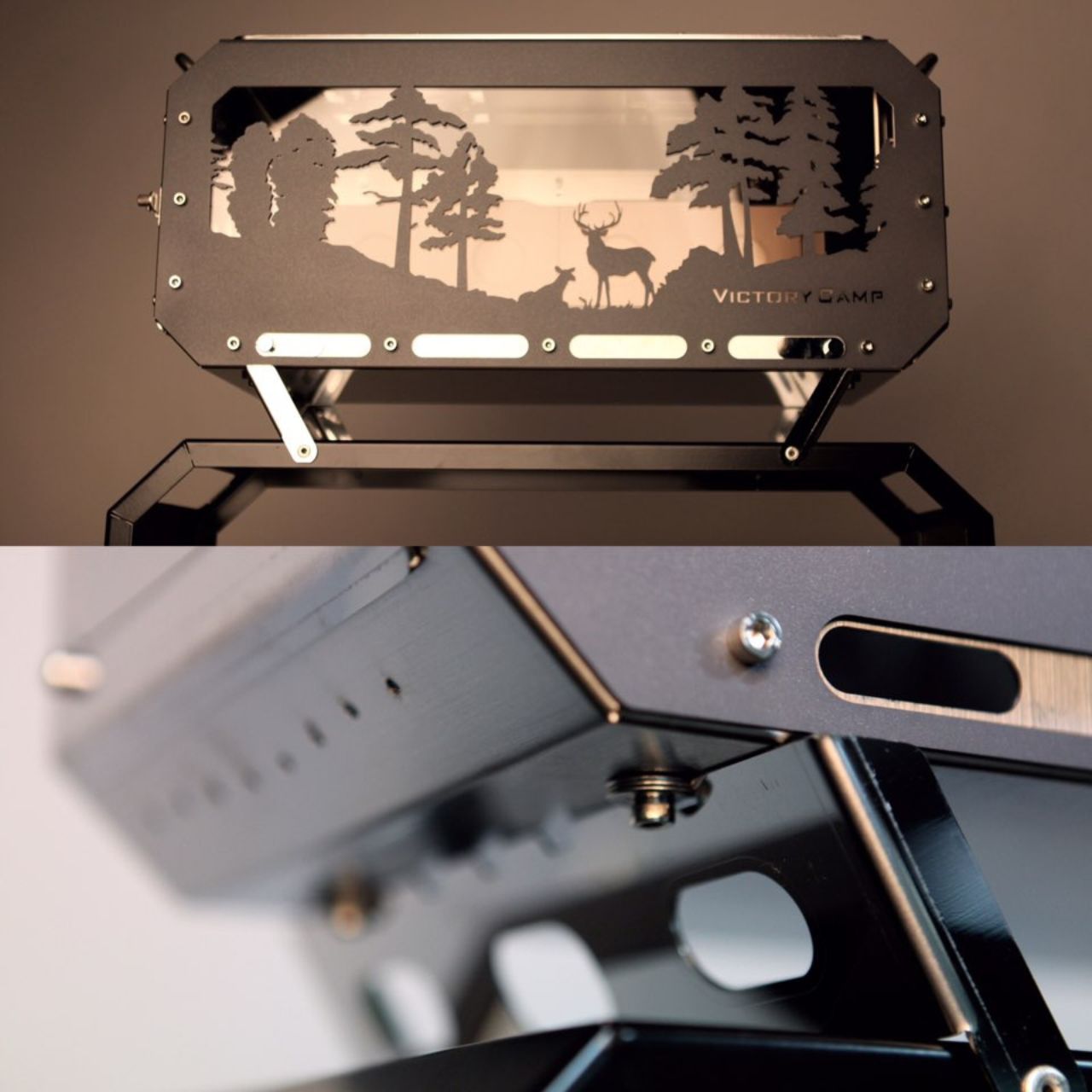

- Stove with Stand High: 560x240x430(H)mm

Chimney discharge height (centre point) 306mm

- Stove with Stand Low: 560x240x380(H)cm

Chimney discharge height (centre point): 256mm

- Weight: 19kg

Other Details:

1. Due to the nature of polished stainless steel, such as mirrors and hairlines, scratches inevitably occur during the transportation of materials and assembly of the form. In addition, stainless steel raw materials are produced as a decorative surface on only one side, so the surface finish or gloss itself is different on the opposite side. In the case of painted re-forms, there are cases where some of the paint does not settle on the cut surface. Please note that this is not a defect in the product and does not interfere with use, so it is not a reason for defects before purchasing.

2. It is recommended to use it indoors after sufficiently seasoning outdoors, and it is recommended to use Peli combustion after using firewood for seasoning at least 3 times.

Ceramic coating may also peel off in areas where high temperatures are concentrated (especially the combustor docking area).

In addition, if exposed and stored in a humid environment, the paint surface may peel off due to rust.

3. Full-size air curtain: When using a pellet burner, it must be completely closed.

4. Exhaust environment

- Natural exhaust example

When using firewood, use a minimum vertical connection of 3m

When using pellets, use a minimum vertical connection of 6m

If a horizontal chimney is added, add a vertical chimney equal to the horizontal length x 1.5 height.

5. Forced exhaust connection example

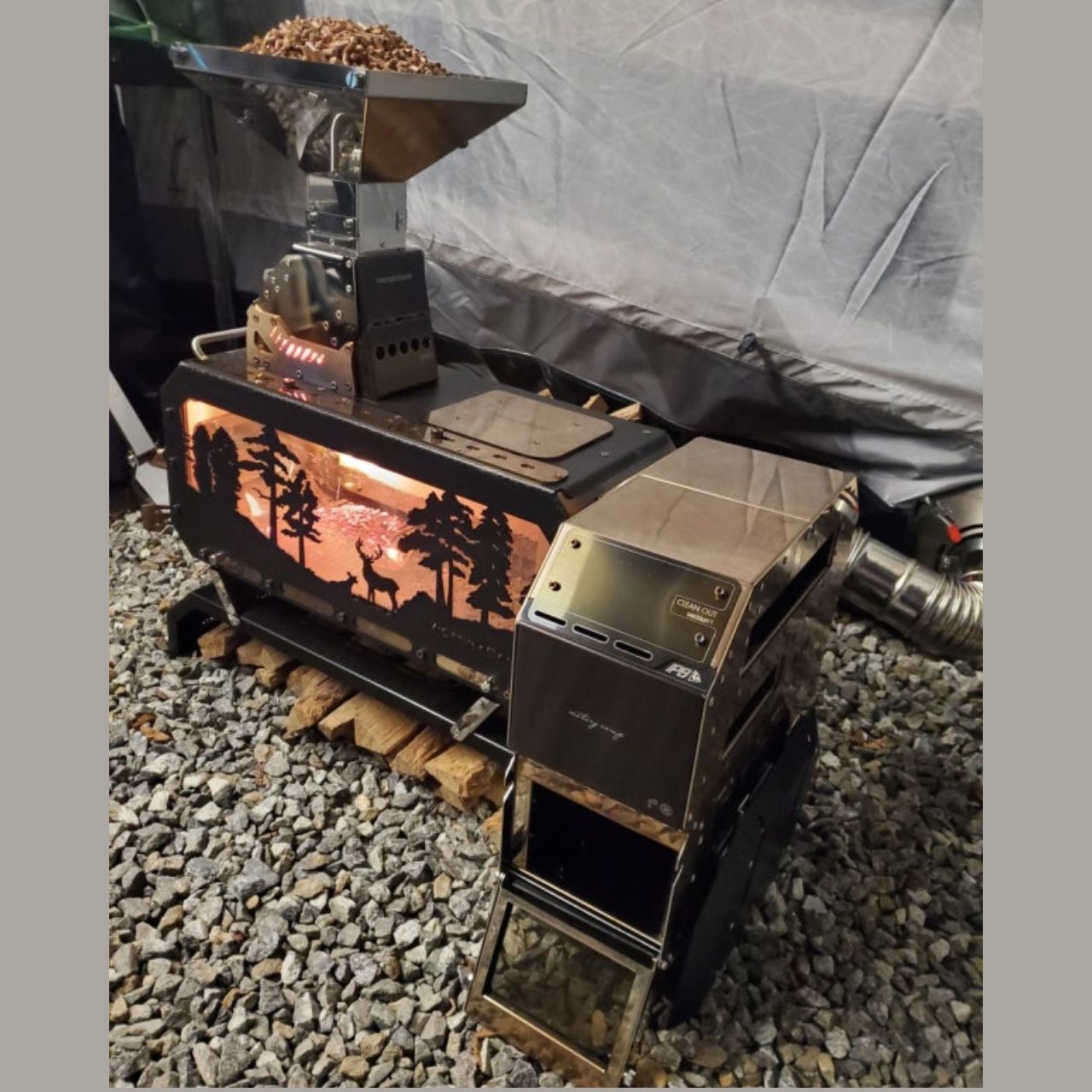

1. Big DD Stove + IPB + motor

2. Big DD Stove + ZP2 (ZP1 can include the body, but motor alone is not possible)

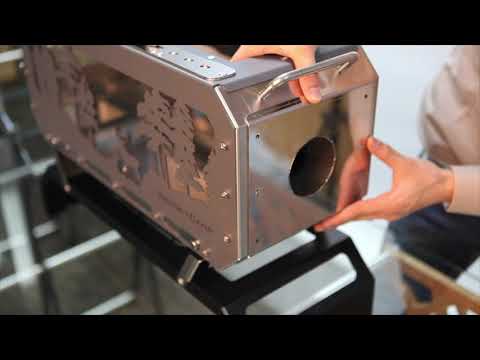

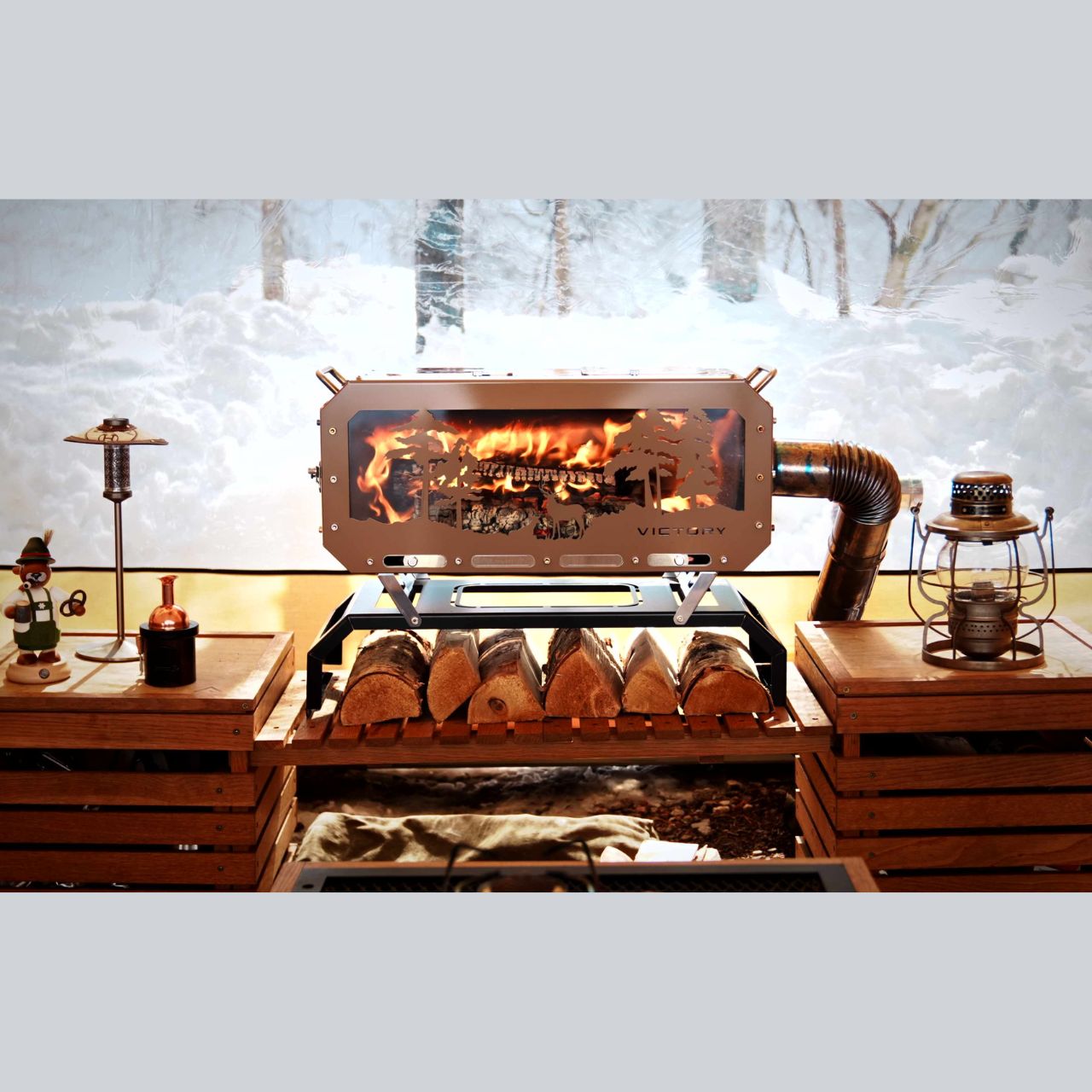

6. Fire Door & Chimney Connection (Left or Right Selectable)

The location of the fire door and the chimney connection that connects the heat delay can be selected and installed on the left or right. The location of the stove can be selected according to the actual use environment.

Accordingly, the location of the pellet burner is also changed.

* The pellet burner should be used far from the chimney connection.

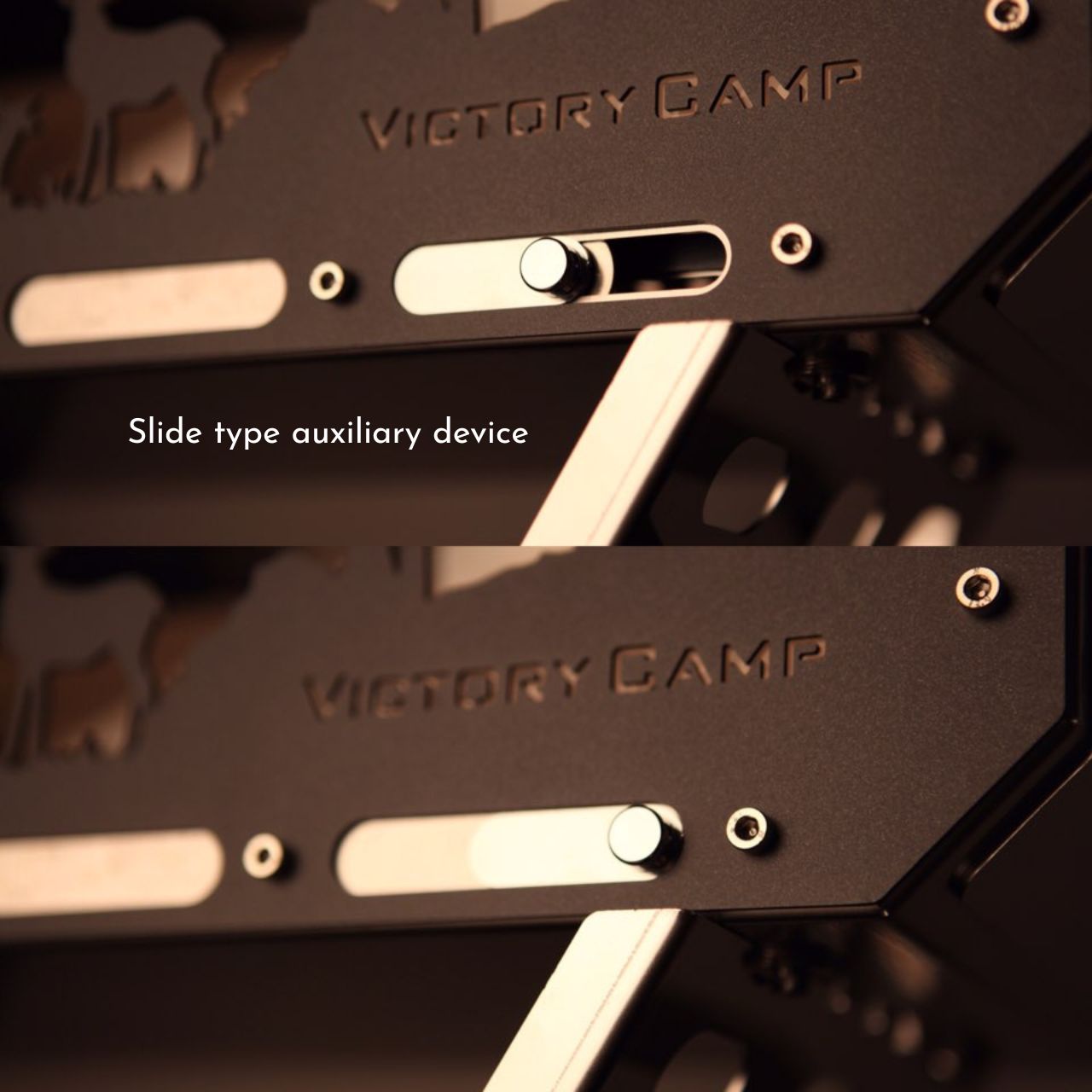

7. Slide-type auxiliary air inlet

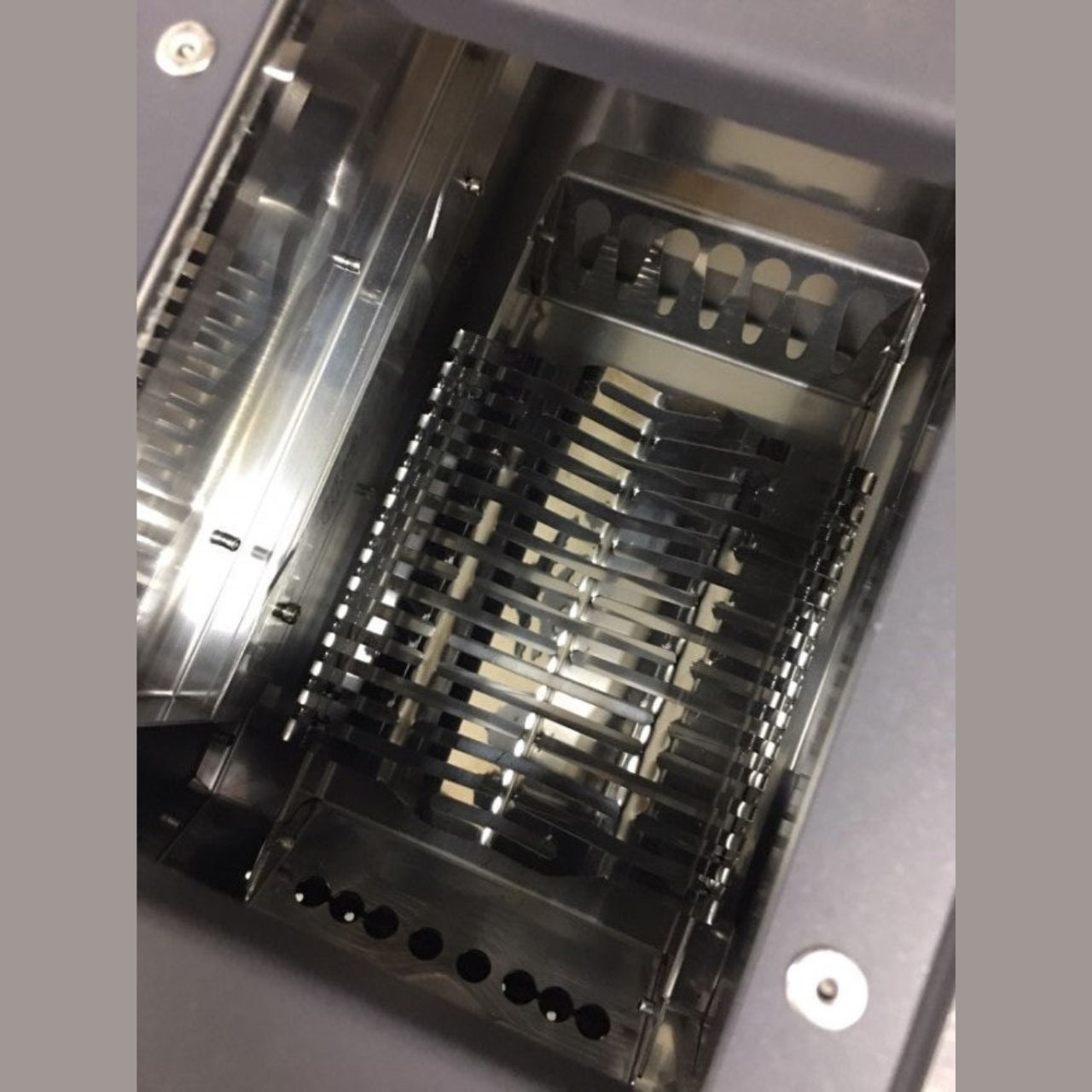

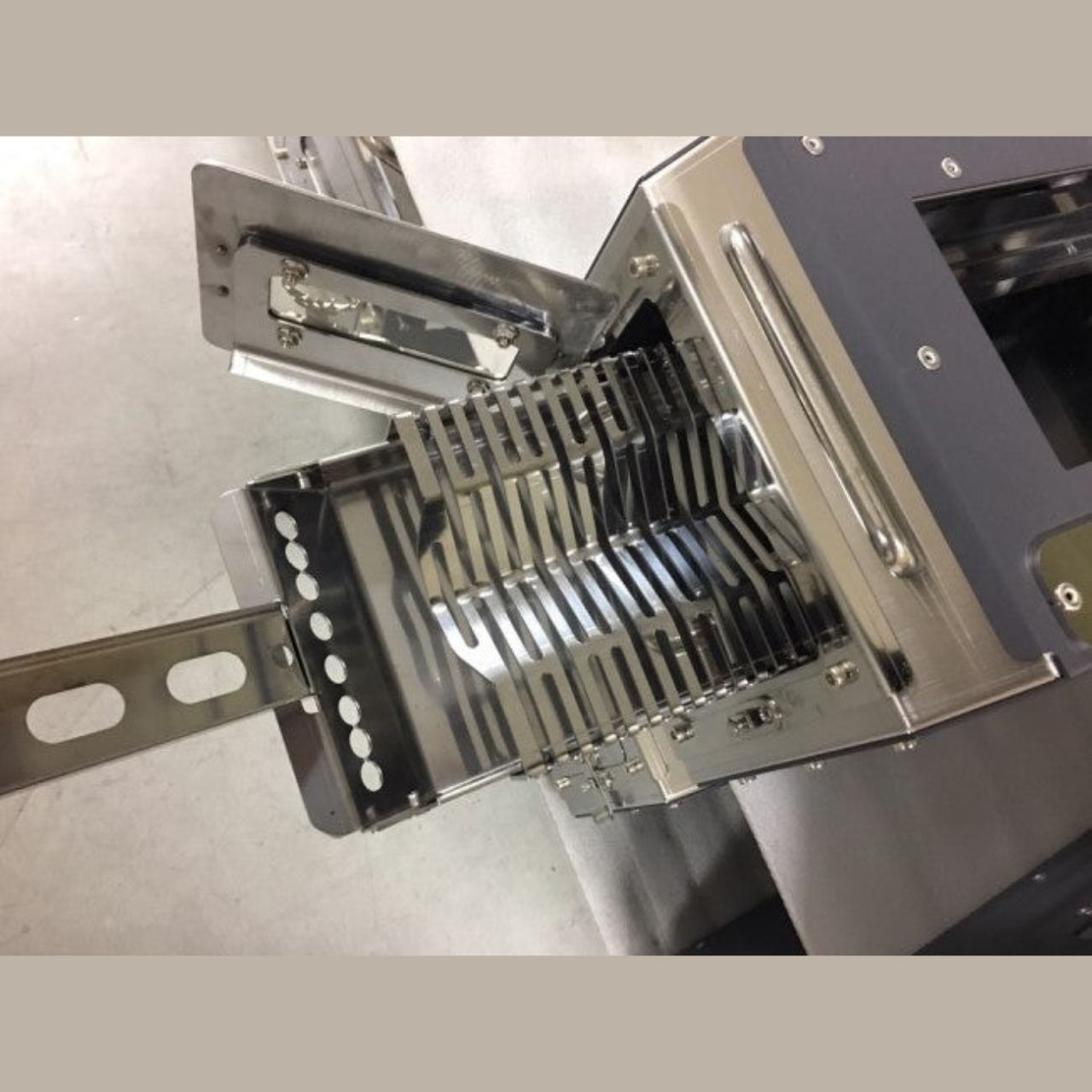

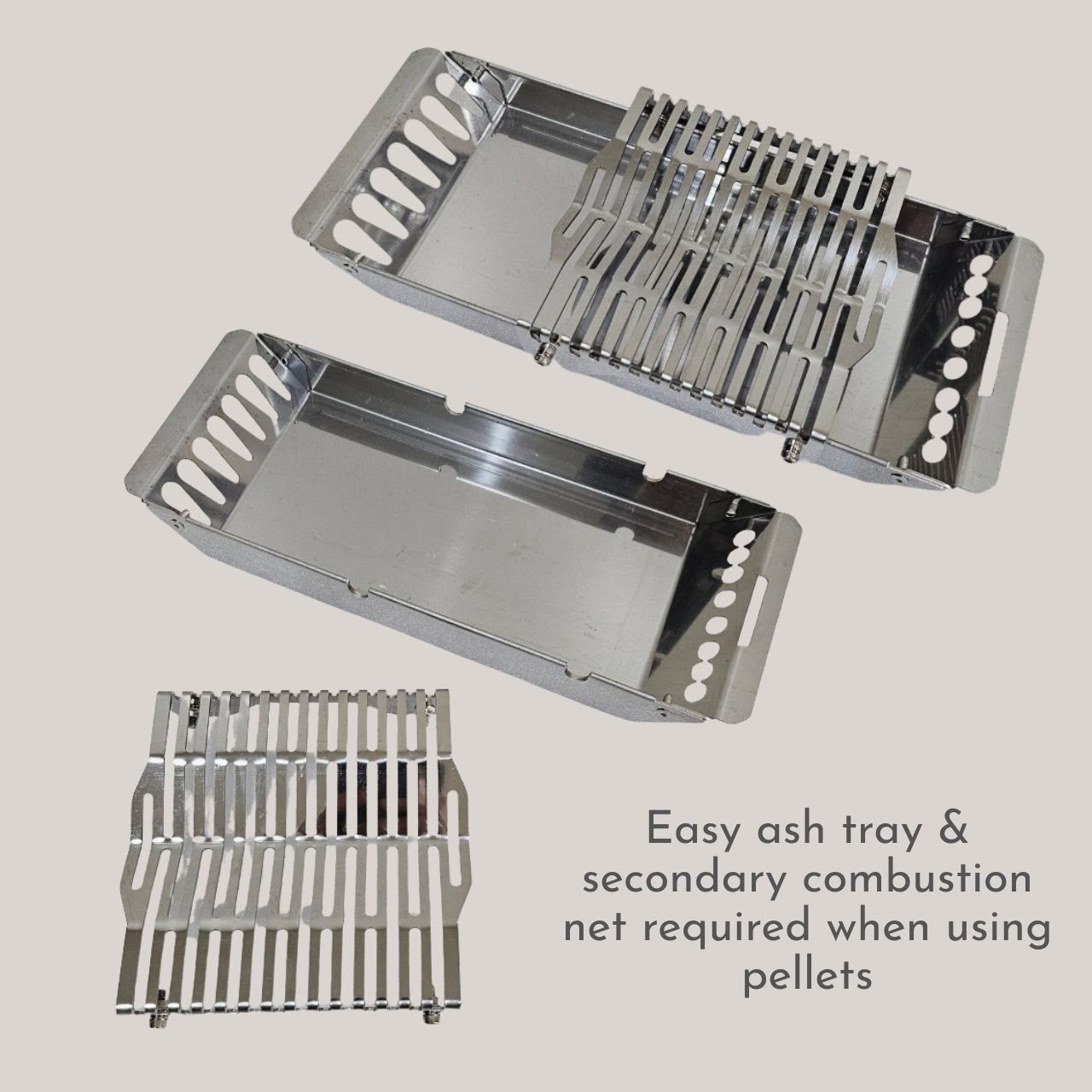

The easy-to-use auxiliary air inlet with a sliding door supplies auxiliary oxygen to the bottom of the charcoal tray to help complete combustion when using firewood.

When using firewood, you can induce wood gasification combustion in the firebox by adjusting the air supply ratio of the lower air supply and the air curtain.

- Heat Delay & Spark Baffle: Creating a 360-degree roller coaster-like exhaust flow, which not only increases heat efficiency but also minimizes sparks from going out of the chimney.

❗❗ "Import tax" is not included; it has to be paid by the buyer based on each country's taxation policy.

Thank you for visiting our store. If you have any questions regarding these products, please do not hesitate to contact us.
